LEVER-LITE ILLUMINATED LEVER SWITCHES – SERIES 84000
FAX: 773 792-2129
?
SWITCHES
295
* Please visit the product pages on our website for the most up-to-date product information
LEVER SWITCHES (continued)
LEVER-LITE ? III
SERIES 84000 - ILLUMINATED LEVER SWITCHES
Lever-Lite ? III illuminated lever switches are designed for
front-of-panel mounting, relamping, terminating, color
changes and removal. A minimum of time is required to install
singly, in rows, or in matrix arrays to meet a wide variety of
switching applications. 2- and 3-position types are available in
non-locking functions. Mounts on .875" (22.22 mm) horizontal
centers or 1.5" (38.1 mm) vertical centers. Talk-listen
(intercom) function is also available. Illumination technique
provides a different color for each lever position.
LAMPS
Standard T 1-3/4" midget flange-base lamps (not supplied)
are available in voltages up to 28V.
SPECIAL ORDER FEATURES
1. Talk-Listen (Intercom) function.
2. Welded cross bar gold alloy for dry circuit and silver
contacts are available. See page 294.

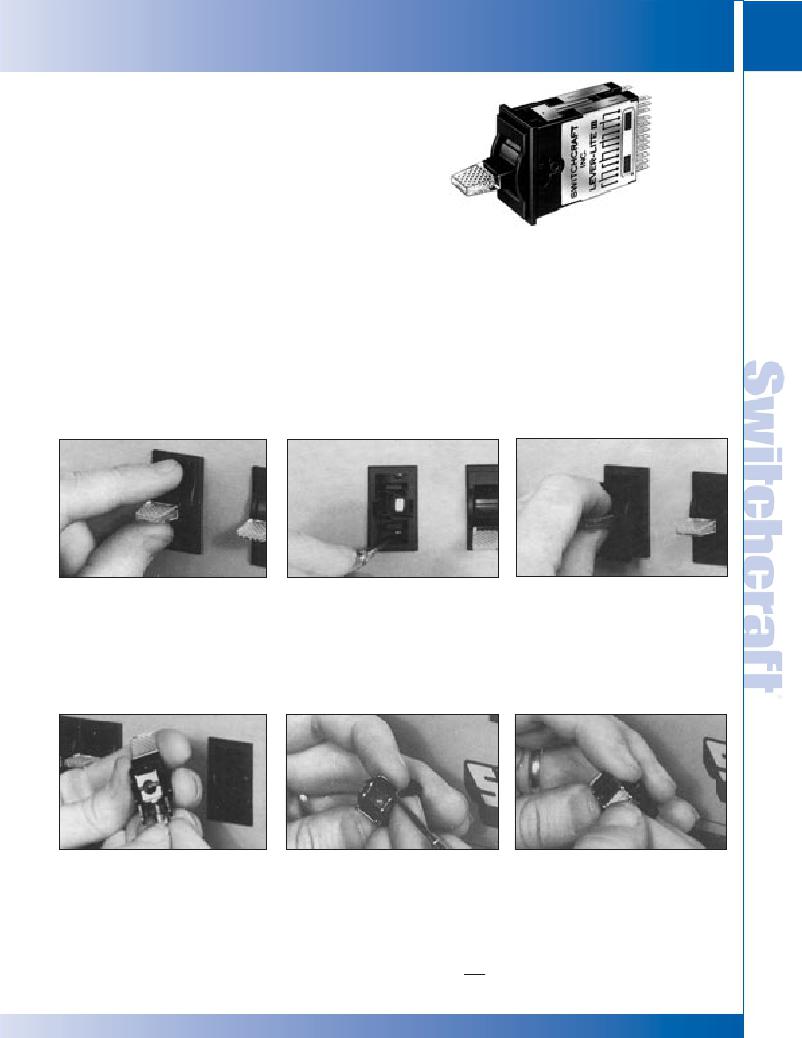

MOUNTING
ILLUMINATION
A single internal lamp provides brilliant lever lighting in any
color required. Standard factory installed color filters are
provided as follows: Series 84000, Multi-Color Illumination
2-position - Amber (neutral position); green (down position).
3-position - Red (up position); amber (neutral position); green
(down position). One-color (all positions) and non-illuminated
switches can be specified on special order. Switchcraft will
install filters for non-standard illumination requirements at
nominal cost on special order.
Grasp fingernail slots on opposite sides
of escutcheon and snap out. Next, grasp
lever and pull lever assembly free. Insert
switch into panel hole.
Turn two internal screws clockwise with
screwdriver to securely mount switch
to panel.
Replace lever assembly and “snap”
escutcheon into place. Installation
complete!
RELAMPING/REPLACING
COLOR FILTERS
Lever-Lite III switches are designed for simplified lamp installation and replacement,
and color filter changes or custom installation in the field or on the OEM production
line. Lamps and filters may be changed at any time with ease and without
dismounting switch from panel or disturbing wiring.
Remove escutcheon and lever
assembly. (see “MOUNTING” above)
For relamping, pull lamp out of
retainer with finger-tip. Replace lamp.
For color filters, use fingernails or
small screwdriver to remove. Gently
lift (don’t pry) up under edge of
filter until it “pops” out.
Inch
DIMENSIONS ARE FOR REFERENCE ONLY
(mm)
Place new filter in position and press
until it “snaps” in. Replace lever
assembly and escutcheon.
(see “MOUNTING” above)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
